Jeremias Dwkl

Jeremias DW KL is a multifunctional, twin wall insulated stainless steel flue system specially designed for high temperatures, high pressure and condensing. Its main characteristic is that no sealing material is used but a permanent connection is established through the Jeremias conical system.

Application:
Double wall pressure-resistant flue gas system (resistant to 5000 Pa) made of stainless steel for all standard furnaces, combustion engines and CHP appliances in negative, positive and high pressure for dry and moist mode. Can be connected to block heat stations with flanges.

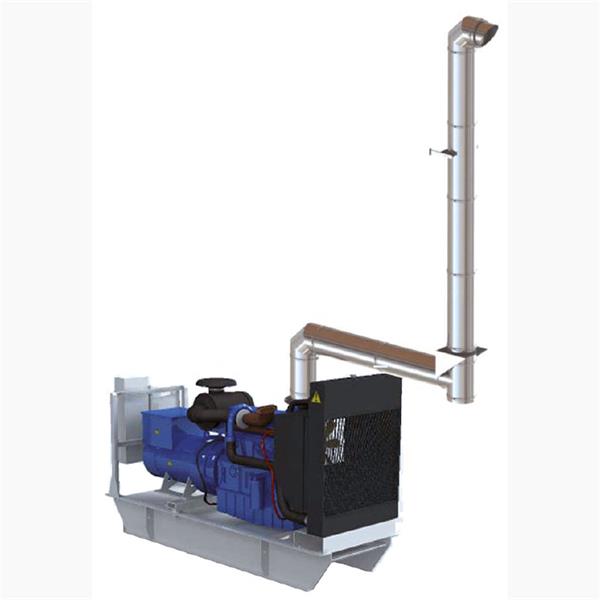

• Generator Exhaust  High temperature exhaust gases and pressure
• CHP  Combined Heat & Power
• Smoke Extract  Fire rated smoke extract
• Waste Gas Extract  Industrial process exhaust
• Kitchen Extract  Catering / Kitchen extract duct
• Chemical Exhaust  Painting & Printing Industries
• Drying Ovens  Automotive Industry
• Oil, Gas and Solid Fuels
• Working Temperature < 400°C / < 600°C
• Material: Inside: 1.4571 (316Ti) / 1.4404 (316L). Outside: 1.4301 (304)
• Wall Thickness Inside: 0.6. Outside: 0.6. (Also available from<0.6  1.0mm)
• Welding Seam: TIG Continuous / Laser
• Insulation: Mineral Insulation with 32mm wall thickness, bulk density 120kg/m³
• Connection: Negative / Positive with conical connection
• Positive Pressure: 200Pa / 5000 Pa
• Sooth Fire Resistant  see CE designations (G)
• Free Standing Extension: 3m up to last wall spacer to ˜ 600
• Free Standing Extension: 1.5m up to last wall spacer >˜ 600 “ 1000
• Thermal Resistance: 0.501m² K/W
• DWKL Exhaust System:  (N) CE Mark Number 0036 CPD 9174 002
• DWKL Exhaust System: CE Classification DIN EN 1856 - 1
• Full range of accessories
