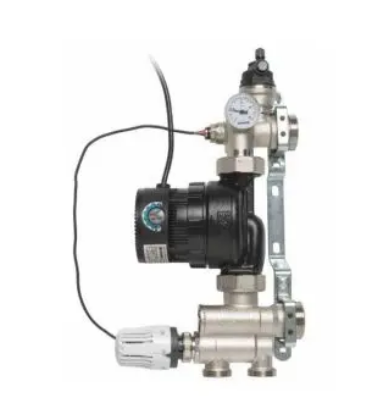

Polytherm Mixing Station 1" with 25/6/130mm A-Rated Pump

• Thermostatic mixing valve with remote sensor for accurate control of flow temperature• Easy to use thermostatic head with temperature locking feature

• Flow increase valve to increase flow rate for larger manifolds / heat outputs

• Adjustable temperature range from 20o C to 70o C. The low range makes it suitable for screed floor drying BS EN 1264-4

• Lowara Ecocirc Class A pump with unique anti-block operation. ErP 2015 compliant

• Built-in non-return valve to aid filling during commissioning

•Built -in automatic air-vent and temperature gauge

• Mounting bracket for additional stability and noise reduction

• 1” male close coupled primary flow and return connections

• 1” male manifold connections with union for fast assembly and removal

•Suitable for Topway Type 2 manifolds or any manifold with connections on 210mm centres

• Optional ball valve set for fitting to 1” M primary connections

• Tested to 10 bar post assembly

• Valves Kvs 3 - 4.8, 10KW - 18KW

• TM3 Electronic version available which allows electronic actuation of the mixing valve when controlled by an

electronic control system such as the RCE controller.
